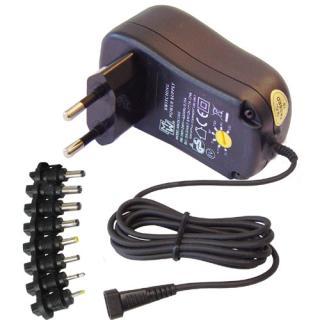

Eco-friendly 600mA(max) Plug-In Switching Power Supply
with USB-Outlet and 6 different output connectors, high
energy efficiency, low stand-by loss. With rotary switch at
the back.
INPUT VOLTAGE 100 to 240 Vac
INPUT FREQUENCY 50/ 60 Hz
NO LOAD POWER CONSUMPTION <0.3 W
INPUT FULL LOAD CURRENT(at 120 Vac) 0.16 A
INPUT POWER 10.6 W Max
OUTPUT
LIGHT LOAD OUTPUT VOLTAGE 3.0/4.5/5.0/6.0/7.5/9.0/12 V dc ±10%
FULL LOAD OUTPUT VOLTAGE 3.0/4.5/5.0/6.0/7.5/9.0/12 V dc ±10%
MIN LOAD OUTPUT CURRENT 0 A
MAX LOAD OUTPUT CURRENT 0.6 A
NOISE TEST BANDWIDTH 20MHz Each output bypassed by a 10uF electrolytic capacitor parallel with a 0.1uF ceramic capacitor to GND
LINE REGULATION 0.5 % Input 90 to 264 Vac output loaded at full load
SETUP,RISE,HOLD UPTIME 200ms,30ms,17ms/115Vac; 200ms,20ms,80ms/230Vac
OVERALL PERFORMANCE
TOTAL OUTPUT POWER 7.2 W Max
EFFICIENCY COMPLIED with CEC-400-2006-002-REV1 Efficiency level 〝Ⅳ〞Table U2 Requirement.
PROTECTION
■ OVER CURRENT PROTECTION
■ SHORT CIRCUIT PROTECTION
■ OVER VOLTAGE PROTECTION
■ L.P.S (Limits for power source)
■ OVER POWER PROTECTION
□ AUTOMATIC THERMAL PROTECTION
|
