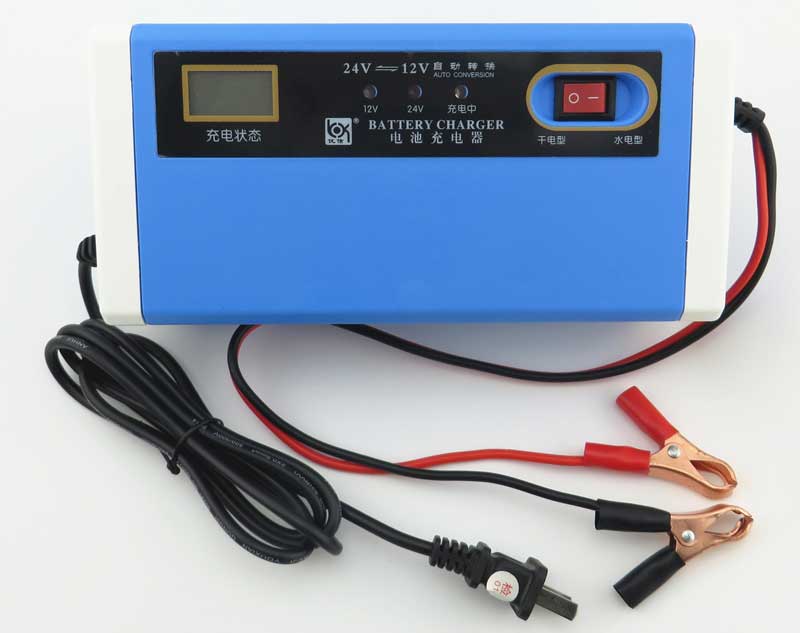

Feature:
Input Voltage:110-220V
Output Current:10A
Output Voltage:12V / 24V autodetect
Suitable batteries:12V 24V 7AH~200AH
Dimension:224*109*70mm
Power line length:150cm
Output line length:50cm
Features:
1.The battery charger adopts three-steps charge mode , and use switching power supply integrated technology. The battery can automatically track the real-time changes , and timely charging according to the constant current ,constant voltage ,step-down trickle intelligent mode . When the battery gets fully charged ,it will be turned off automatically.
2.With short circuit protection ,when the power is bad in short circuit ,the charger will protect automatically .
3.With fast charging speed , low battery dehydration rate,not overcharging.
Brief Introduction
1.Confirming that the AC is match with the input voltage of battery charger .
2.Confirming that the charger output voltage is matched with the rated voltage .
3.Before charging , please insert the battery box plug at first ,then insert the AC power plug .Once finishing charging ,pull off the AC power plug at firststep-down trickle intelligent mode . When the battery gets fully charged ,it will be turned off automatically.
Application
You can use the charger's engine starting function to start up when coming across following problems:
1.The car has no eletricity and breaks down.
2.The engine oil becomes thicker in winter,which makes it difficult to start up.
3.The car's engine is aging and it is unable to start up the car.
|
