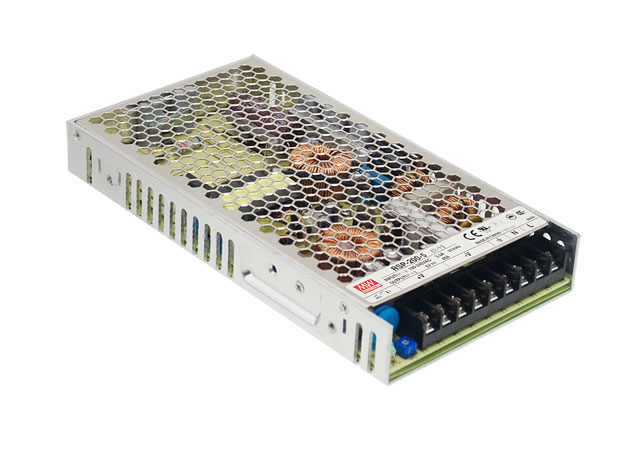

Sursa in comutatie 220V->12V 200W Mean Well

Mareste poza

DC Voltage	12V
Rated Current	16.7A
Current Range	0-16.7A
Rated Power	200.4W
Ripple and Noise	150mVp-p
Output voltage adj. Range	10 to 13.2V
Voltage Tolerance Note.3	±1%
Line Regulation Note.4	±5%
Load Regulation Note.5	±5%
Setup, Rise Time	1500ms, 50ms/ Full load
Hold Up Time (Typ.)	8ms/ Full load
Voltage Range	88 to 264V; 124 to 370VDC
Frequency Range	47 to 63Hz
Efficiency (Typ.)	89%
AC Current (Typ.)	2A/115VAC
Inrush Current (Typ.)	20A/ 115VAC
Leakage Current	<1mA/ 240VAC
