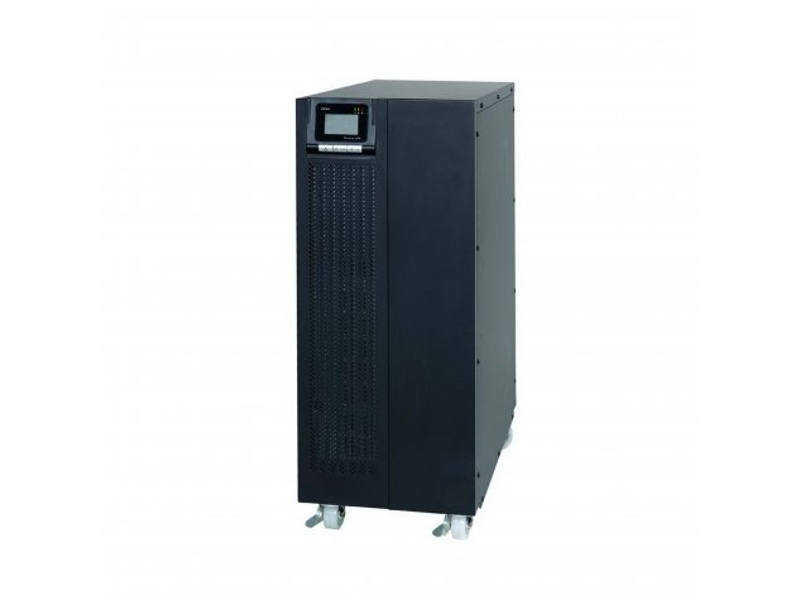

Model number MF6KVA
Capacity 6000V/4200W
Rating input voltage 230V
Operating voltage range 170V-280V
Input power factor ≥99%
Norminal output voltage 230V
Output frequency sychronized with the utility on AC mode,
50HZ/60HZ±0.2% on battery mode
Harmonic distortion ＜2%(liner load)
Efficiency ≥90%
Battery specification
Battery DC voltage 240VDC
Battery type 12/7AH*20
Back up time(50% load) 20min
Back up time(full load) 7min
Charge current(Standard unit) 1A
Typical recharge time 6-8hours(to 90% of full capacity)
Transfer time(Between AC mode and battery mode) 0ms
Transfer time(Between AC mode and bypass mode) 0ms
Operating temperature 0-40°
Noise level ＜45dB
Humidity range ＜1500m
|
