Model Number: CTN130
Output Power: 101 - 200W
Output Type: Dual
Size: 190*130*28mm
Input Voltage: 100-240V
Output Voltage: 5V/12V/24V
Type: DC/AC Inverters
Output Frequency: 45~55KHz
Output Current: 2.5~7.5mA
Specifications

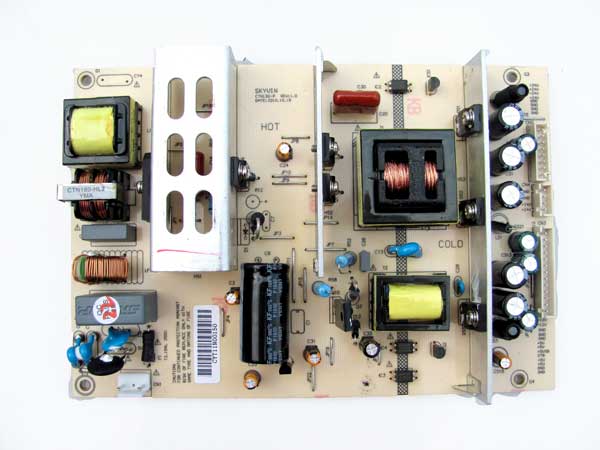

LCD power Inverter(CTN130)
1.Harmonic current:Meet EN60065-2002/IEC61000-3-2 CLASS D
2.Output Power:130W
3.Screen size:24~32"
LCD power Inverter(CTN130) is designed for A/D board and inverter.It's can be adapted to universal AC sources.
Efficiency(full load): 80% min at100V~; 84%min at 220V~
Standby power loss: ≤1W
Temperature:
Storage: -20°c~+80°c
Operation: 0°c~+45°c
Humidity:
Storage: 5%~95%RH,non-cindensing
Operating: 10%~90%RH,non-cindensing
Specification:
Apply for LCD:24"~32"
Vibration: 10-55Hz, 19.6/s2(2G),3 minutes period, 60minutes each along X, Y and Z axis.
Cooling Method: Ventilation cooling
|
