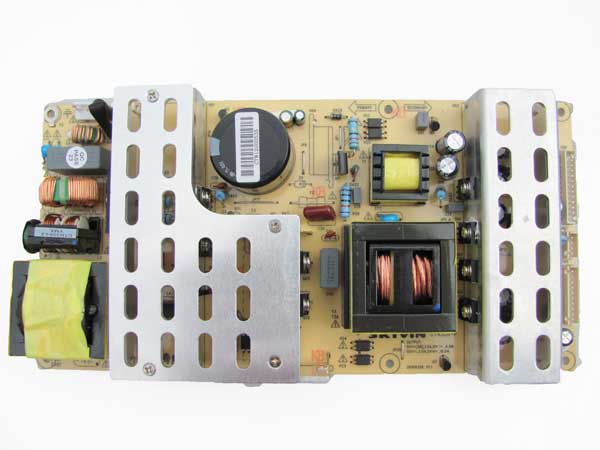

LCD TV Power Supply for 47inch 820g CTN308-P
Support for 47inch LCD TV
Model:CTN308-P
Weight: 820g/1
Size:260 X 130 X 35 MM
Input Voltage: 100v - 240v
OUTPUT: 5VSB-1.0A; 5V-4A; 12V-3A, 24V-10.0A
Specifications
308W LCD power Inverter DC to AC(CTN308)
1.Meet GB17625.1-1998/IEC61000-3-2 CLASS D
2.Output Power:308W
3.Certified CB
308W LCD power Inverter(CTN308) is designed for A/D board and inverter.It's can be adapted to universal AC sources.
Efficiency(full load): 82% min at100V~; 86%min at 220V~
Standby power loss: ≤1W 240V~input; output current ≤ 50mA
Temperature:
Storage: -20°c~+80°c
Operation: 0°c~+45°c
Humidity:
Storage: 5%~95%RH,non-cindensing
Operating: 10%~90%RH,non-cindensing
Specification:
Apply for LCD:42"~47"
Vibration: 10-55Hz, 19.6m/s2(2G),3 minutes period, 60minutes each along X, Y and Z axis.
Cooling Method: Ventilation cooling
|
