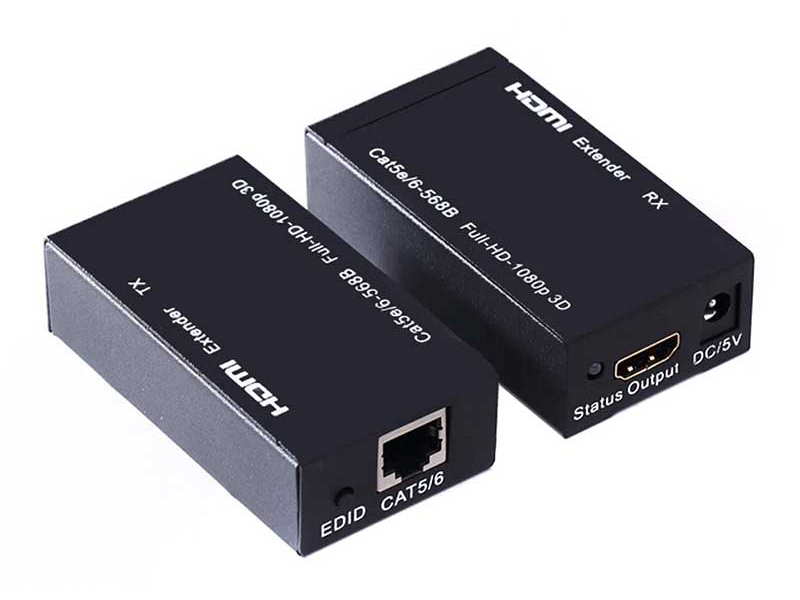

The HDMI Extender by CAT-5e/6 uses 1 piece of CAT-5e/6 cables to extend the HDTV display up to 30 m for 1080p using a Cat6 cable the transmission distance can be up to 60 m for 480p while using CAT-5e/6 cable. It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more ? exibility and convenience in cable construction. It is equipped with HDMI connectors and is capable of supporting DVI equipment when used with a HDMI to DVI Adapter, providing greater ? exibility and options when integrating several home theater components.
Features:
• One pair as a full functional module, no need of setting.
• CAT-5e/6 cable can substitute a HDMI cable to achieve long distance transmission.
• Follow the standard of IEEE-568B.
• Transmission distance can be up to 30 m for 1080p while using CAT-6 cable.
• Compact size.
• Signalling rates up to 1.65GBps in support of 1080p display.
• HDCP compliant.
Speci?cations:
Signal Inputs/Output
Input Video Signal 0.5 -1.0 V p-p
Input DDC Signal 5 V p-p (TTL)
Maximum Single Link Range 1920X1200, 1080p
Output Video HDMI
Video format supported DTV/HDTV 1080P/1080i/720P/576P/480P/576i/480i
Transmission distance
Using CAT6 Cable 30 m for1080p
Using CAT5e/6 Cable 50 m for 480p
Resolutions (HDTV)
Interlaced(50&60Hz) 480i, 576i, 1080i
Progressive(50&60Hz) 480p, 576p, 720p, 1080p
Environmental
Operating Temperature -15 to +55°C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10°C to +80°C
Storage Humidity 5% to 95 % RH (no condensation)
Power Requirement
External Power Supply 5V DC@2A
Regulatory Approvals
Converter Unit FCC, CE, UL
Power Supply UL, CE, FCC
|
