Warnings:
1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.
2.It is not 5V tolant,Connect RX or TX on 5V for Arduino will destroy this module.
3.You must use a logic level converter, or a 3.3V for Arduino
4.The 3.3V supply on the for Arduino Uno has inadequate current capabilit to power this module.
5.You must provide a separate,higher 3.3V supply(about 300mA or better)

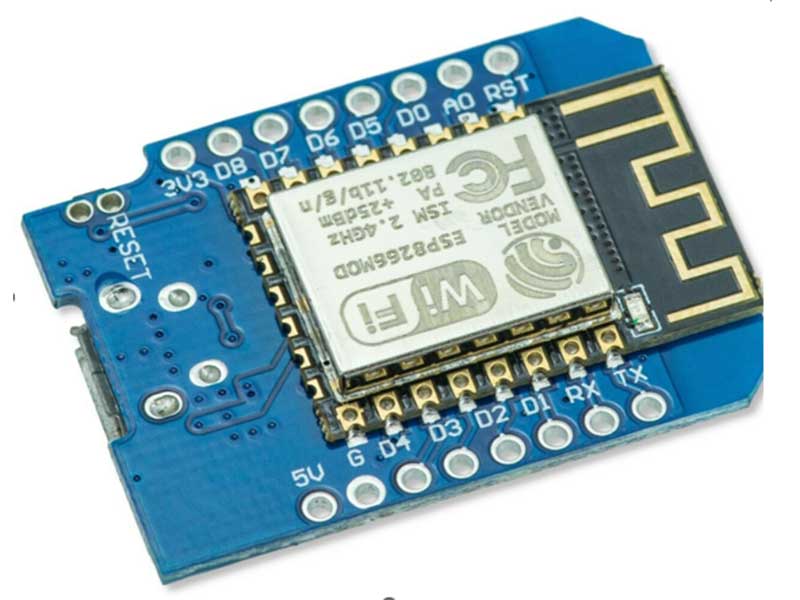

ESP-12F
- Type:ESP-12F
- Standards Certification: FCC / CE / TELEC
- Wireless standards: 802.11 b / g / n
- Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
- Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
- Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)
- Working Current: Average: 80mA
- Operating temperature: -40 ° ~ 125 °
- Storage temperature: Nomal temperature
|
