BME280 Atmospheric Pressure Sensor Temperature Humidity Sensor Breakout for Arduino BMP280 sensor Replace BMP180
Description:

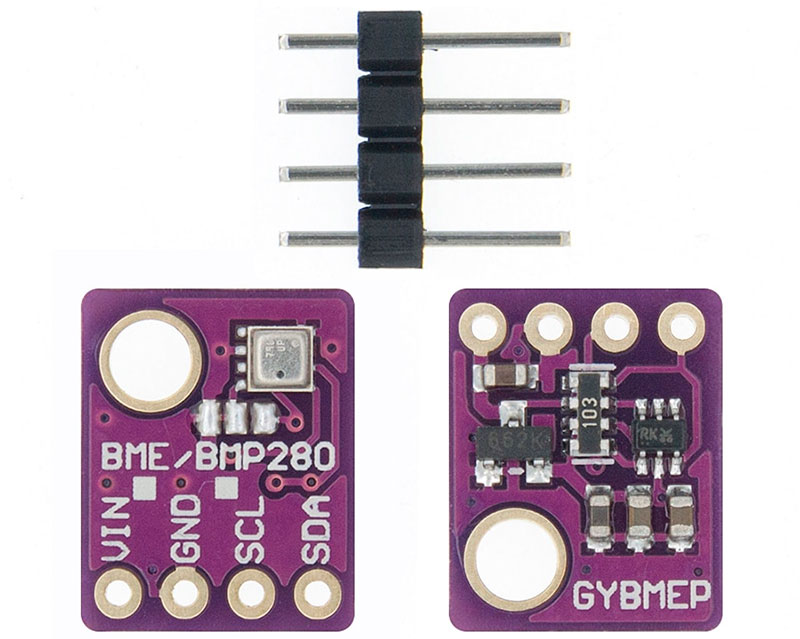

BME280, the precision sensor from Bosch, is soldered onto PCB. Not only the pressure and the temperature, this sensor can measure humidity.
It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
Make sure to put SDO to high to get address 0x77. This will work with Adafruit BME280 library perfectly.
Specifications:
Supply Voltage: 1.8 - 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa
Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa
Temperature: +-1 Humidity: +-3%
Pressure: +-1Pa
I2C address
SDO LOW 0x76
SDO HIGH£ 0x77
|
