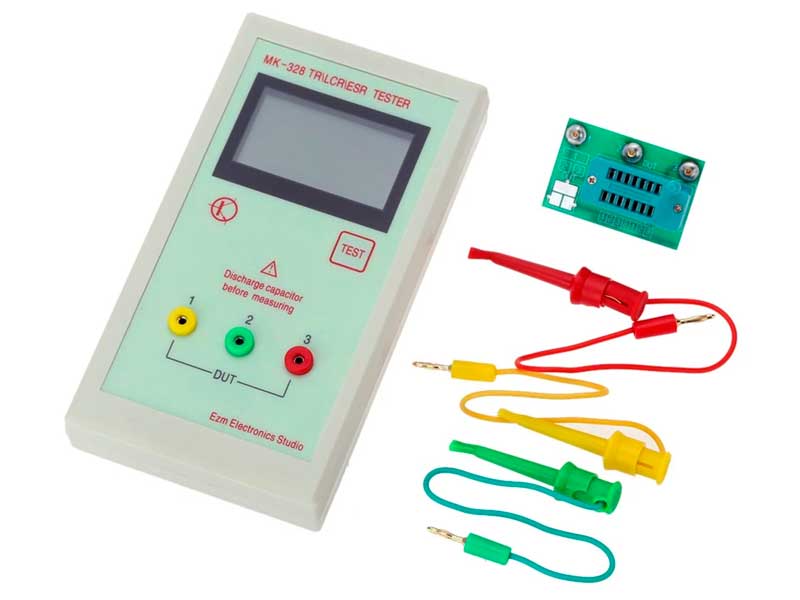

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, JFETs, diodes, double diodes, Thyristors and Triacs.
Features:
Operates with ATmega328 microcontrollers.
Digital LCD backlight display for easy readings, can display measured data and graphics.
One key operation with automatic power shutdown.
Can be powered by 9V battery(not included).
With shell and bracket, portable and convenient for use.
Automatic detection of NPN and PNP bipolar transistors, N-Channel and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and Triacs.
Automatic detection of pin layout of the detected part.
Measure of current amplification factor and base-emitter threshold voltage of bipolar transistors.
Detection of the protection diode of bipolar transistors and MOSFETs.
Measuring of the Gate threshold voltage and Gate capacity value of MOSFETs.
Resistance measurement resolution is 0.1 ohms, 50M ohms can be measured.
Up to two diodes are shown with symbol or symbol in correct order.
Notice:
Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Specifications:
Display: 128*64 LCD Backlight
Input Voltage: 9V
Current: Approx. 20mA
Power Supply: 1 * 9V Battery(NOT Included)
Resistance Measurement: Max. 50MΩ
Resistance Resolution: 0.1Ω
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
Inductance Measurement: 0.01mH-20H
Screen Size: 5 * 2.7cm / 1.97 * 1.06in
Product Size: 15 * 8 * 3.5cm / 5.9 * 3.15 * 1.4in
Product Weight: 188g / 6.65oz
Package Size: Approx. 17 * 10 * 3.5cm / 6.7 * 3.94 * 1.4in
Package Weight: 215g / 7.58oz
Package List:
1 * Transistor Tester
3 * Test Cable
|
