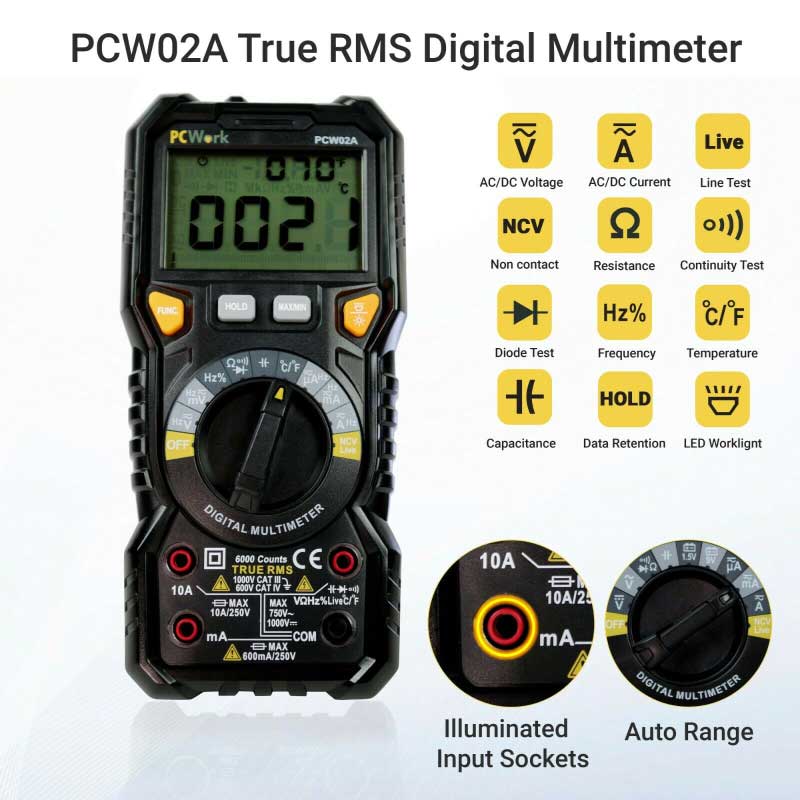

Features and Specifications:
• CAT III 1000V, CATIV 600V
• 6000 counts
• True RMS
• Auto Range
• AC/DC voltage, current, resistance,
capacitance, frequency, duty ratio, and
temperature measurement
• NCV (non-contact voltage), live line,
continuity, and diode test
• Double ceramic fuses, PTC thermistors
• 2.9” double color backlight LCD display
with bargraph function
• Data hold with Max/Min function
• LED illuminated input sockets
• LED work light and bracket
• Great packaging design and manual with
pictures in various languages: EN, GER, ES,
FR, PT, PL
DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+3)
AC Voltage: 600mV/6V/60V/600V/750V ±(0.8%+5)
DC Current: 600uA/6000uA/60mA/600mA ±(0.8%+3); 10A ±(1.2%+3)
AC Current : 600uA/6000uA/60mA/600mA ±(1.0%+3); 10A ±(1.5%+3)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ ±(1.0%+3); 6MΩ/60MΩ ±(1.5%+3)
Capacitance: 10nF/100nF/1μF/10μF/100μF/1mF ±(4.0%+3); 10mF/100mF ±(5.0%+5)
Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz ±(1.0%+3); 10MHz ±(3.0%+3)
Duty: 1%~99% ±(3.0%+3)
Temperature (°C): -20°C~1000°C ±(1.0%+3)
Power Supply: 2*1.5V AA Batteries; Auto Power-Off function
Size: 188*88*58mm
Weight: 350g
Safety Rating: CE; EN61010-1,-2-030 EN61010-2-033, EN61326-1
|
