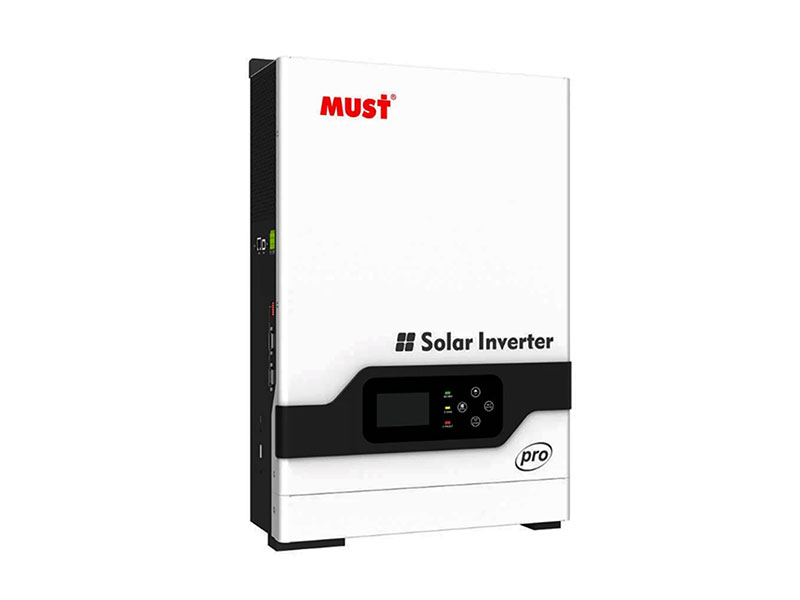

Nominal Battery System Voltage 24VDC
INVERTER OUTPUT
Rated Power 3000VA / 3000W
Surge Power 6000W
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode) 230VAC±5%(Setting)
Inverter Efficiency(Peak) 93%
Transfer Time 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage 230VAC±5%
Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage 24VDC
Floating Charge Voltage 27.4VDC
Overcharge Protection 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 450VDC
Maximum PV current 18A
PV Array MPPT Voltage Range 150~430 VDC
Maximum Solar Charge Current 80Amp
Maximum AC Charge Current 60Amp
Maximum Charge Current 80Amp
MECHANICAL SPECIFICATIONS
Machine Dimensions (W*H*D)(mm) 272*355*100
Package Dimensions (W*H*D)(mm) 540*395*241
Net Weight(kg) 11
Gross Weight(kg) 12
OTHER
Humidity 5% to 95% Relative humidity (Non-condensing)
Operating Temperature 0°C~50°C
Storage Temperature -15? ~60?
|
