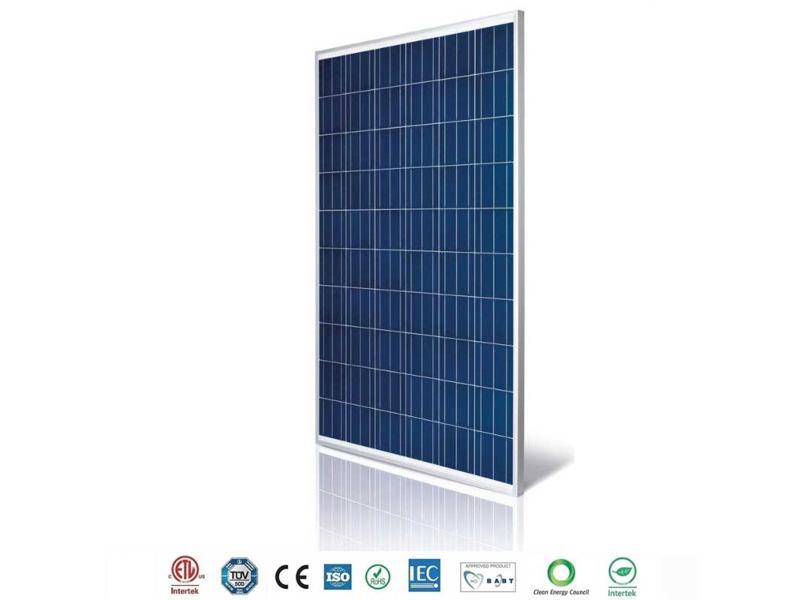

Cell Type Polycrystalline Solar Cell
Rated Maximum Power (Pmax) 165W
Tolerance 0~+3%
Voltage at Pmax(Vmp) 18.25V
Current at Pmax(Imp) 9.05A
Open-Circuit Voltage(Voc) 22.65V
Short-Circuit Current(Isc) 9.01A
Maximum System Voltage 1000VDC
Maximum Series Fuse Rating 20A
Operating Temperature -40°C to +85°C
Weight(kg) 11.5kg
Dimension(mm) 1480*680*35mm
Manufacture Warranty 10years
Performance Warranty >90% after 10years , >80% after 25 years
standard test condition AM = 1.5, E = 1000W/m2, TC = 25°C
Pretul pe 1W fara tva este de 1,676 ron
|
