System capabilities: Full HD DVB-S/S2 Complian, Fully DVB compliant
Video Decode: AC-3,MPEG-2 MP@HL;H.264 BP MP&HP@L4.1;AVS profile@L6.1/4.0/2.0
PAL/NTSC: Automatic PAL/NTSC conversion
Channels Number: 6000 channels TV and Radio programmable
Favorites: 8 different favorite groups selection
OSD Language: EnglishGermanFrenchPortugueseSpanishItalianRussianTurkishPolishArabic FarsiEspanolDeutsch
OSD Color: 16-bit OSD with anti-flickering
Channel Search: Channel search in automatic, manual and network search
Channel Edit: Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Easy Menu: Plug and Play installation, with an easy to use Menu System
SoftUpgrade: Software upgrade through USB
Save Channel: Automatic save for last channel
Li-oN Battery: Battery 3000mA
Power Supply: DC12V/1500mA (Input 100V ?240V, 50/60Hz)
Electric Performance
System resource:
Flash Memory: 64Mb Serial Flash
DDR3 Memory: 1Gb DDR3
LNB/Tuner input:
Connector: F type,male
Frequency range: 950MHZ-2150MHZ
Input Impedance: 75Ω
Signal lever: -65dBm~-25dBm
Active Ant Power: 13/18V DC @ 400mA MAX,Overload Protection
LNB switch control: 22KHz
DiSEqC: Ver 1.0/1.1/1.2
Demodulator:
Front end: QPSK(S);QPSK,8PSK,16APSK,32APSK(S2)
Modulation range: 2Mbps~45Mbps
SCPC and MCPC Capable: Yes
Spectral inversion: Auto conversion

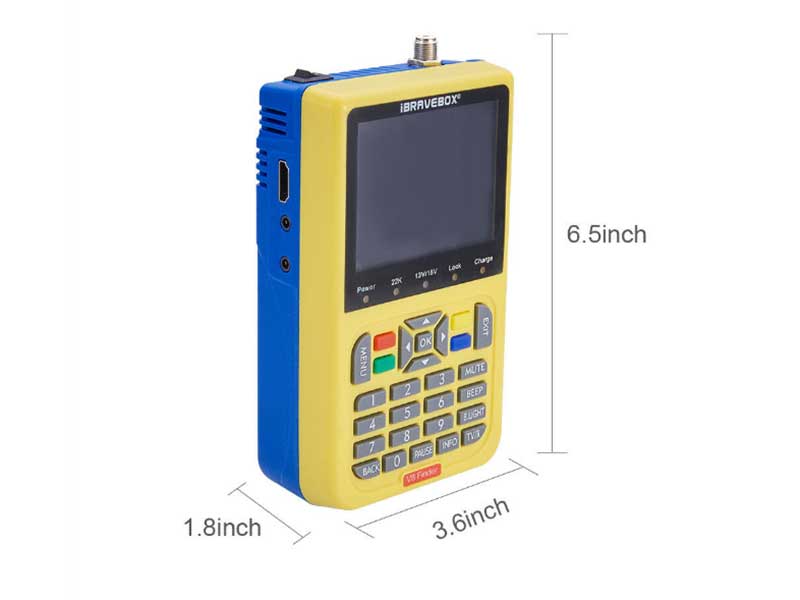

Product Size: 95*155*45mm
Gift Box Size: 240*180*58mm
Weight (1 set): 0.5 Kg (N.W.)/0.85Kg (G.W.)
Panel display: 3.5 inch LCD
Display Color: Colour Screen
Output Interface: LNB IN*1, DV OUT, AV OUT, AV IN, USB,Power supply
HD: HD(up to 1080P) output
|
