Maxim MAX232 (560-018) / ICL232
General Description

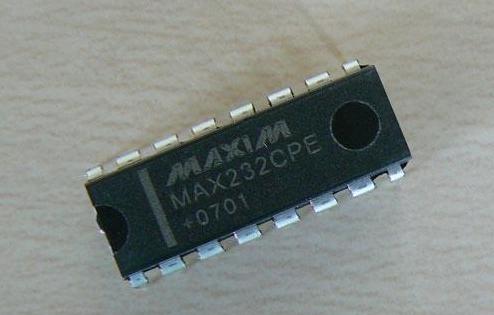

The MAX232CPE is an RS-232 driver/receiver intended for all EIA/TIA-232E and
V 28/V 24 communications interfaces, and in particular, for those applications
where a +12V is not available.
The MAX232CPE is particularly useful in Battery-powered systems, since their
low-power shutdown mode reduces power dissipation to less than 5uW.
Applications
Portable computers.
Low-power modems
Interface translation.
Battery-powered RS-232 systems.
Multi-drop RS-232 Systems.
Features
| Operates from single +5V power supply. |
| Meet all EIA/TIA-232E and V.28 specifications. |
| Two drivers and two receivers. |
| 3-state driver and receiver outputs. |
| Data rate 120 (kbps) |
Pin Configuration
Application Circuit
|
